Product Code: AFM4817R9005

Head Type: Large Flange

Min Grip Range (mm): 5

Max Grip Range (mm): 10

Shear N: 1500

Tensile N: 2350

Body Mat: Alum - Al Mg 2.5

Mandrel Mat: Steel - Zinc Cr3

Colour: Black - RAL 9005

Hole: 4.9mm

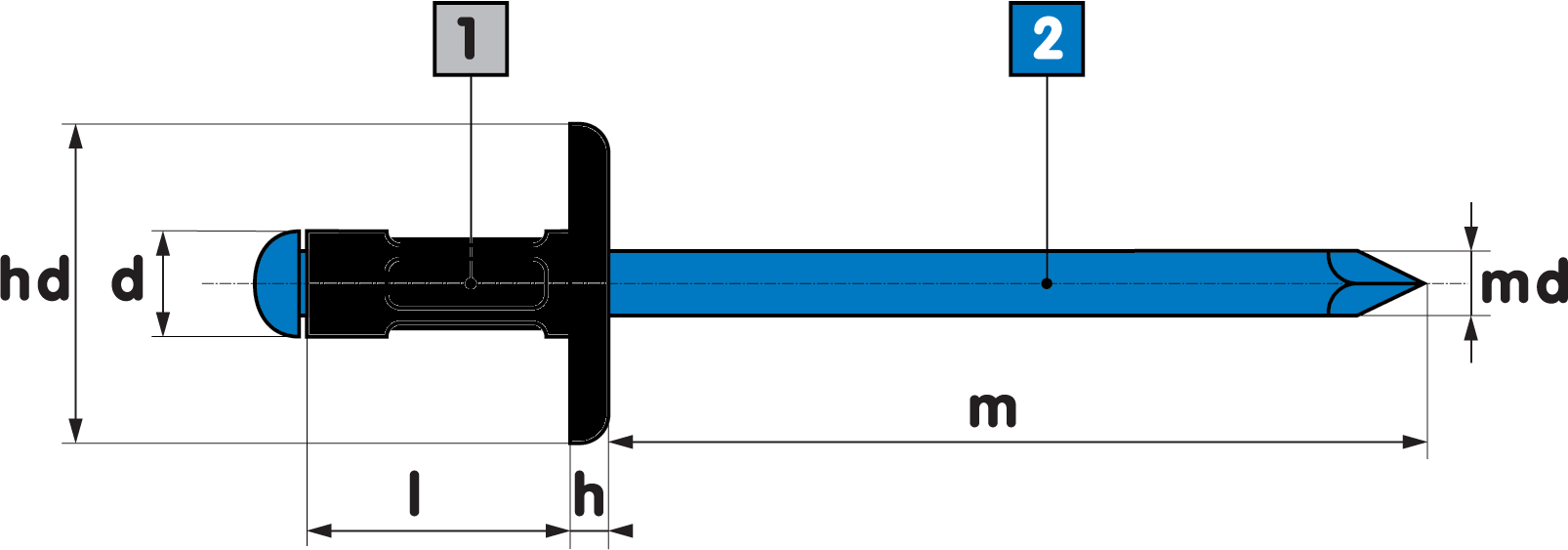

hd: 16.0 = 0.0 / - 0.5mm

d: 4.8 + 0.08 / - 0.13mm

l: 17mm

h: 2.5 mm

m: 27 mm

md: 2.78 mm
